How to add Branding and Background during a Hubilo Broadcasting Studio Session?

The New Community offers a range of Customization options for the Hosts and Speakers. The Customize options are available in the 'Side Panel'.



Branding:

The Branding option provides Logo and Overlay functionalities. It provides a default option as well as an option to add new Logo and Overlay images.

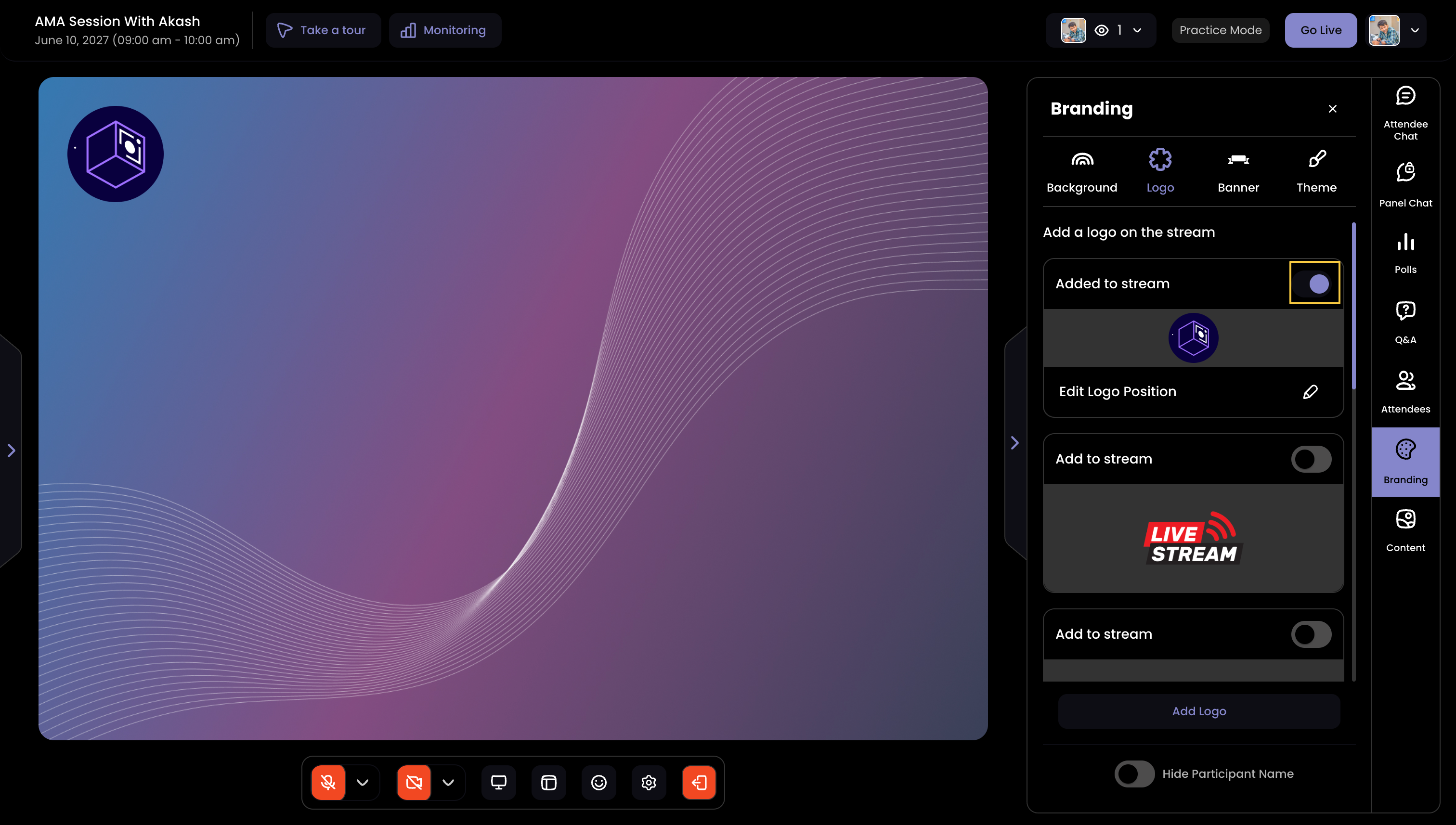

Logo:

  • The Host can go ahead and apply a Logo to their session.

  • One Logo can be activated at a time.

  • The Host has an option to Activate, Edit and Delete the Logo. The Host can apply the Logo by clicking on the 'Activate' option available on the image.

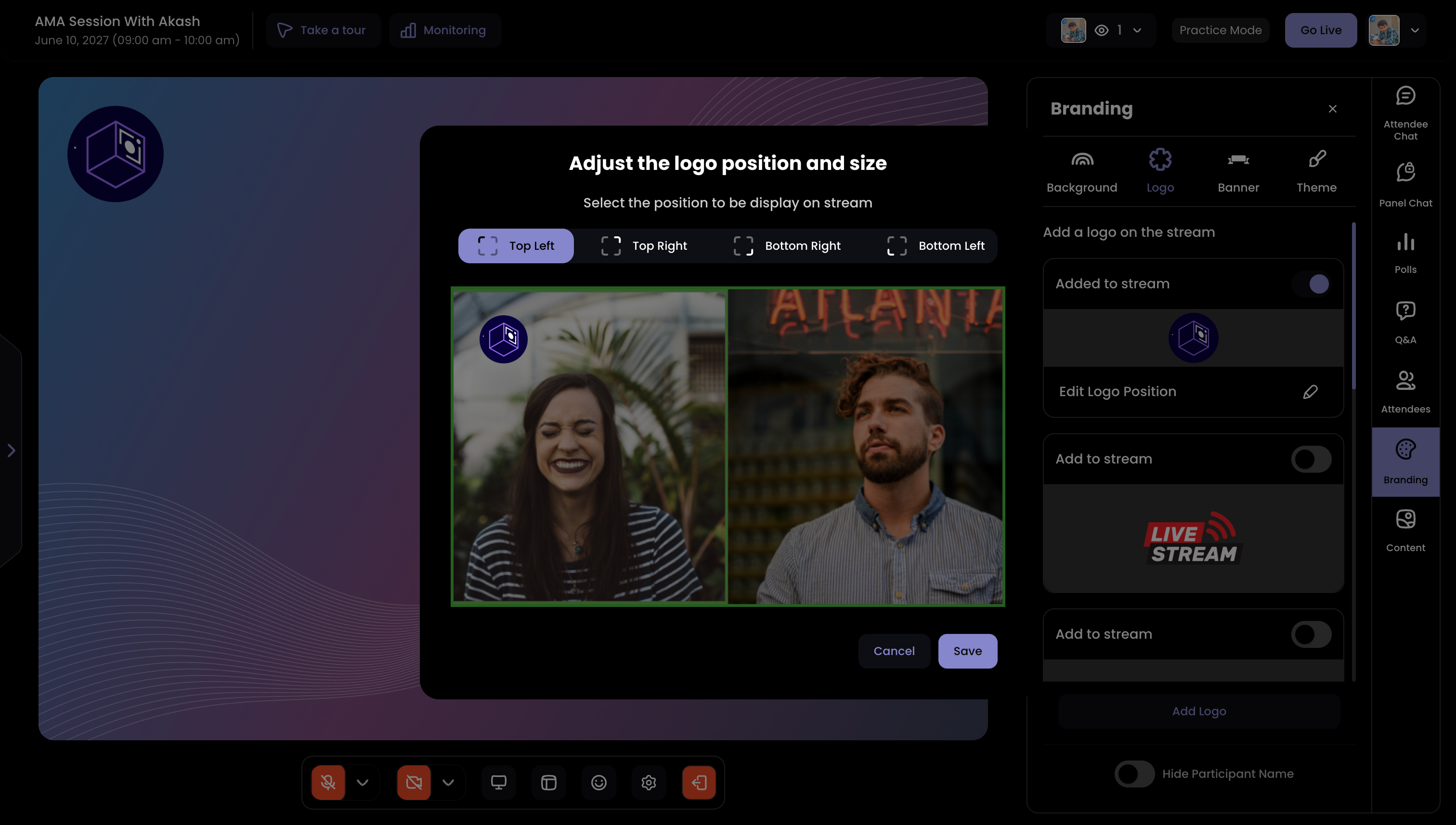

  • The Host can Edit the Logo by clicking on the 'Edit' option and use it to position and/or resize the logo.

  • A host can position the Logo at the Top Left corner as shown below:

  • A host can position the Logo at the Top Right corner as shown below:

  • A host can position the Logo at the Bottom Right corner as shown below:

  • A host can position the Logo at the Bottom Left corner as shown below:



Logo Dimensions Supported:

  • The image needs to be in PNG format.

  • Height and Width to be minimum 300px.

  • Resize a logo function is not built by tech and will not be there.

  • A maximum of 10 logos can be added with 2 default logos.



Overlay:

  • The Host can go ahead and apply an Overlay for their sessions. A default overlay option is also provided.

  • The Host has an option to Activate or Delete the Overlay.

  • One Overlay can be activated at a time. The Overlay can be applied by clicking on the 'Activate' option available on the image.



Overlay Dimensions Supported:

  • The image needs to be in PNG format.

  • Height and Width to be minimum 1112px X 624px.

  • A maximum of 10 overlays can be added with 3 default overlays.

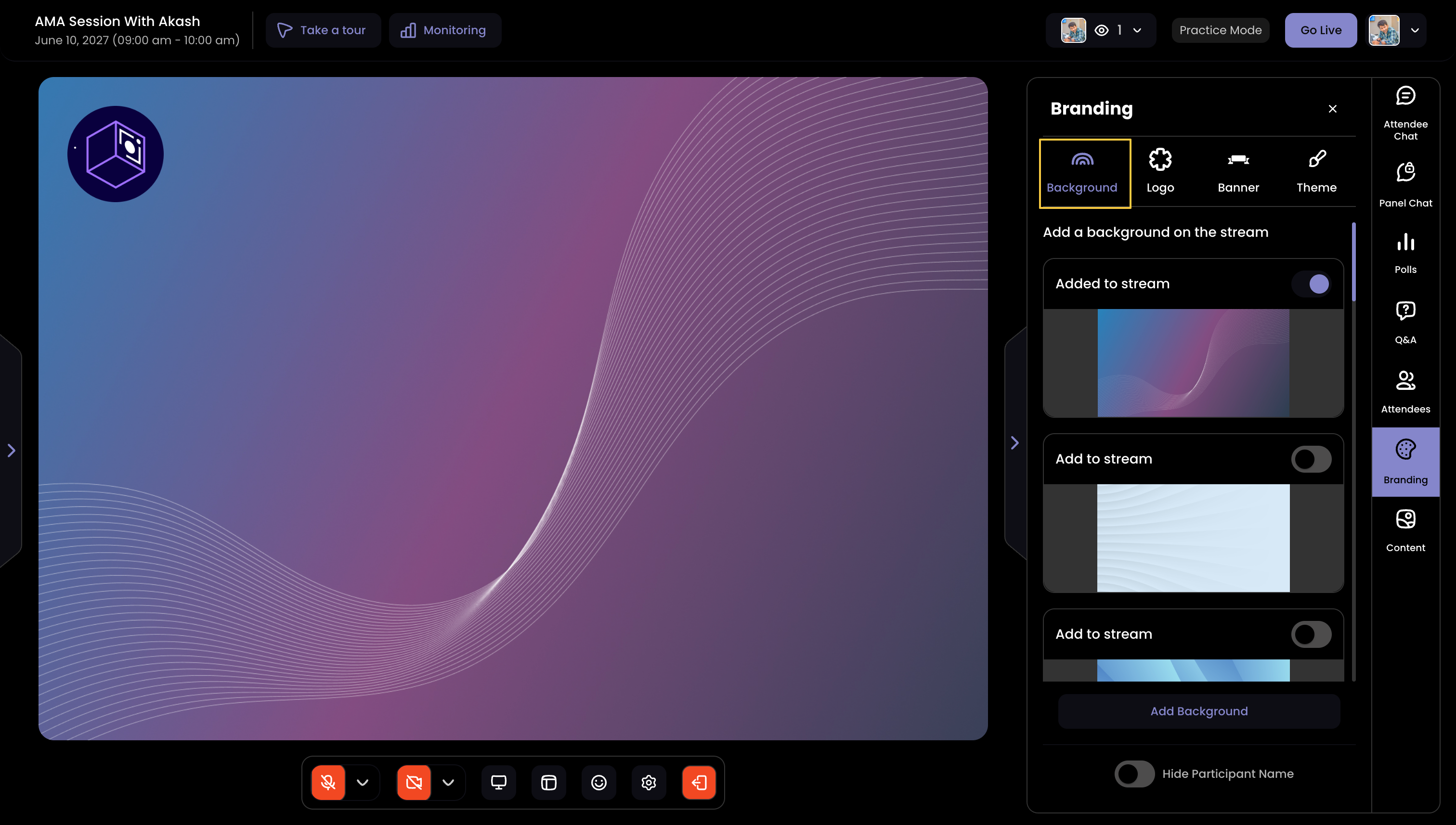

Background:

  • The Host can go ahead and apply Background to their session.

  • Two default background options are provided as well as an option to 'Add New'.

  • The Host has an option to Activate or Delete the Background.

  • One Background can be activated at a time. The Background can be applied by clicking on the 'Activate' option available on the image.



Background Dimensions Supported:

  • The image needs to be in JPEG and PNG format.

  • Height and Width needs to be 1112px X 624px

  • A maximum of 20 backgrounds can be added with 5 default backgrounds.
